Premium HDPE Pipes
HDPE Pipe

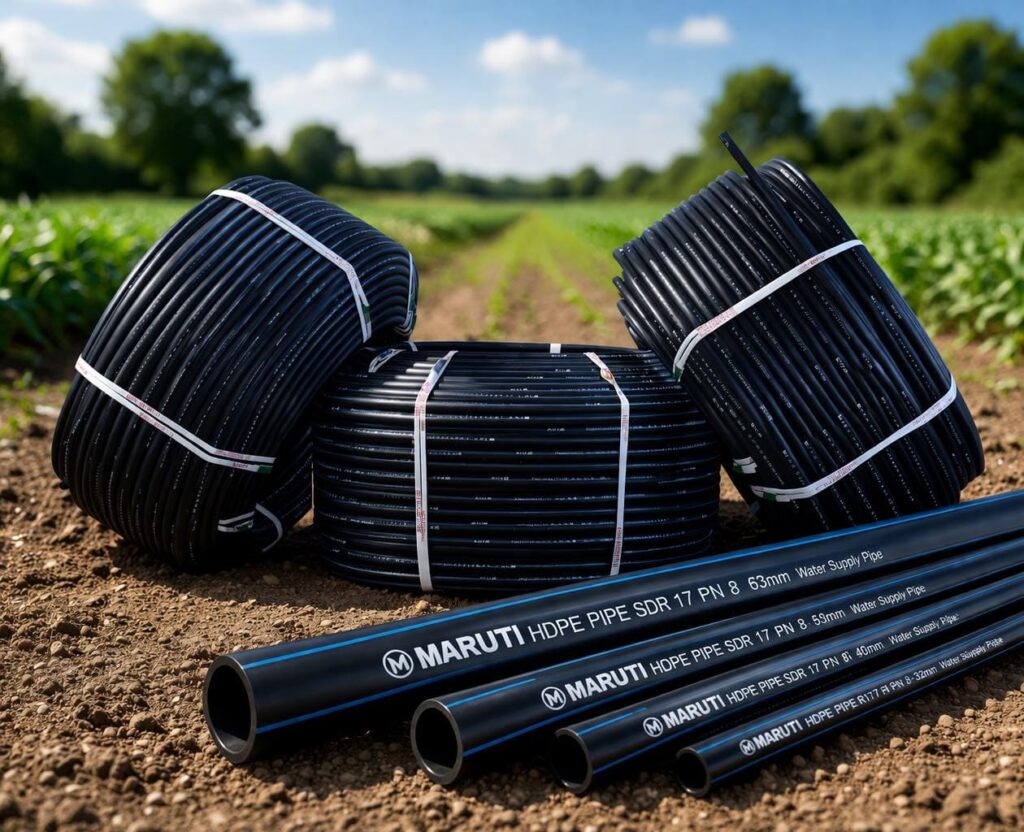

Maruti HDPE Pipe is a high-quality, durable piping solution manufactured by Maruti Pipes Pvt Ltd. Made from high-density polyethylene, this pipe offers exceptional strength, flexibility, and long-term reliability for a wide range of applications including water supply, irrigation, and industrial use .
HDPE pipe is a thermoplastic pipe made from polyethylene resin with a density of 0.941-0.965 g/cm³. It is lightweight, corrosion-resistant, flexible, and chemically inert, making it the preferred choice for modern piping systems
Key Features
Strong & Flexible
Designed to handle heavy pressure and shifting ground without cracking or breaking
Chemical & Leak Proof
High-density material ensures zero corrosion and 100% leak pipes
50+ Year Lifespan
Resistant to rust, chemicals, and sunlight for a service life of over 50 years
| DN (mm) | Inch | PN 3 SDR 41 |
PN 4 SDR 33 |
PN 5 SDR 26 |
PN 6 SDR 21 |
PN 8 SDR 17 |
PN 10 SDR 13.6 |
PN 12.5 SDR 11 |
PN 16 SDR 9 |
PN 20 SDR 7 |
|---|---|---|---|---|---|---|---|---|---|---|
| Rate | Rate | Rate | Rate | Rate | Rate | Rate | Rate | Rate | ||
| 16 | 1/4" | 25 | 30 | |||||||
| 20 | 1/2" | 34 | 40 | 45 | ||||||
| 25 | 3/4" | 44 | 52 | 62 | 73 | |||||
| 32 | 1" | 58 | 71 | 83 | 102 | 120 | ||||
| 40 | 1-1/4" | 73 | 90 | 112 | 135 | 160 | 185 | |||
| 50 | 1-1/2" | 97 | 114 | 141 | 172 | 208 | 247 | 291 | ||
| 63 | 2" | 153 | 180 | 220 | 273 | 330 | 387 | 461 | ||
| 75 | 2-1/2" | 140 | 167 | 210 | 259 | 318 | 387 | 466 | 552 | 651 |
| 90 | 3" | 192 | 246 | 305 | 367 | 445 | 555 | 663 | 790 | 934 |
| 110 | 4" | 290 | 362 | 452 | 555 | 670 | 816 | 990 | 1185 | 1395 |
| 125 | 4-1/2" | 375 | 461 | 576 | 710 | 861 | 1054 | 1282 | 1523 | 1798 |
| 140 | 5" | 477 | 580 | 721 | 889 | 1082 | 1320 | 1609 | 1915 | 2261 |
| 160 | 6" | 605 | 758 | 947 | 1165 | 1420 | 1730 | 2098 | 2495 | 2952 |
| 180 | 7" | 762 | 959 | 1203 | 1465 | 1781 | 2189 | 2644 | 3151 | 3729 |
| 200 | 8" | 946 | 1175 | 1472 | 1815 | 2200 | 2695 | 3265 | 3899 | 4602 |
